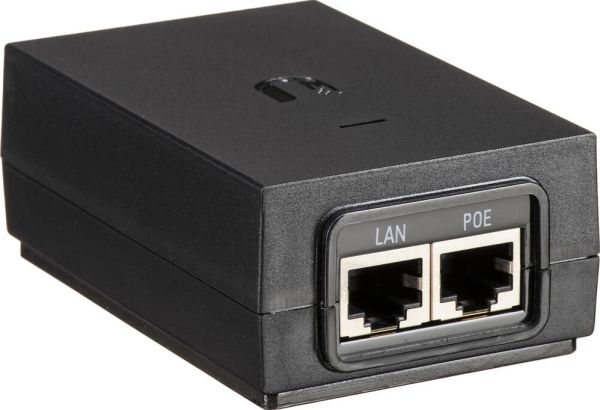

Ubiquiti POE-48-24W-G 48 VDC Gigabit PoE Injector, 24 W Passive Power Supply
Estimated delivery within UAE 1–2 working days
Delivery to other countries 3–5 working days
-
48 V DC passive PoE output up to 24 W
-
Compatible with Gigabit (10/100/1000 Mbps) LAN devices
-
Universal input range (100–240 VAC) supports global use
-
Built-in surge and clamping protection for device safety
-
Compact footprint: ~92 × 60 × 33 mm, lightweight (~159 g)
-
High efficiency (> 80%) and low output ripple
-
Single LED status indicator, easy to install
-
Certified to UL, CE, FCC, IC, and EN55022 Class B standards
Specifications
-
Output: 48 V DC at 0.5 A (24 W Passive PoE)
-
Input: 100–240 VAC (47–63 Hz), approx. 0.6 A @ 120 V, 0.4 A @ 240 V
-
Efficiency: 80%+ with <1% output ripple
-
Switching frequency: ~65 kHz
-
Surge & clamping protection: differential/common-mode surge, 11 V data clamp, ~60–77 V power clamp, peak pulse current ~36 A
-
Compatibility: Gigabit (10/100/1000 Mbps) LAN port (RJ-45 shielded socket)
-
Indicators: Single LED for power/status
-
Operating conditions: 0 °C to +40 °C, 35–95% non-condensing humidity
-
Storage temperature: −30 °C to +70 °C
-
Physical size: 92 × 60 × 33 mm (3.6 × 2.4 × 1.3 inches)
-
Net weight: ~158.5 g (5.6 oz)
-
Certifications: UL, CE, FCC, IC, EN55022 Class B compliant
