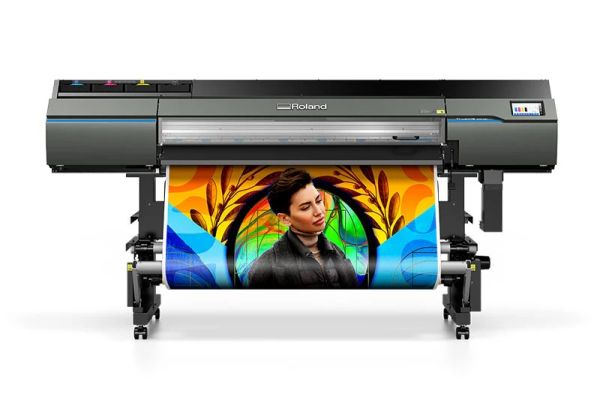

Roland TrueVIS SG3-540 54" Wide Format Printer Cutter – High-Precision Vinyl & Sign Printing

Printing & Cutting

• Printing Method: Piezo inkjet

• Cutting Method: Integrated cutter

• Max. Print Width: 52.9 in (1,346 mm)

• Max. Cut Width: 52.9 in (1,346 mm)

• Media Width: 11.7–54 in (297–1,371 mm)

• Media Thickness:

  • Up to 1.0 mm (39.3 mil) with liner for printing

  • Up to 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner for cutting

• Roll Weight: Up to 77 lb (35 kg)

• Roll Diameter: Up to 9.8 in (250 mm)

• Core Diameter: 3 in (76.2 mm) or 2 in (50.8 mm)

Ink & Print Quality

• Ink Type: TrueVIS INK (500 ml pouches)

• Colors: Cyan, Magenta, Yellow, Black (CMYK)

• Max. Print Resolution: 1,200 dpi

• Print Heater Temperature: 30–45°C (86–113°F)

• Dryer Temperature: 30–55°C (86–131°F)

Cutting Performance

• Cutting Speed: 10–300 mm/s (0.39–11.8 in/s)

• Blade Force: 30–500 gf

• Blade Type: Roland CAMM-1 series

• Blade Offset: 0.0–1.5 mm (0.000–59 mil)

• Software Resolution: 0.025 mm/step (0.98 mil/step)

Connectivity & Power

• Connectivity: Ethernet (100BASE-TX/1000BASE-T, automatic switching)

• Power Supply: 100–120/220–240 V AC, 50/60 Hz

• Rated Input: 8.0/4.1 A

• Power Consumption:

  • During Operation: Approx. 1,090 W

  • Sleep Mode: Approx. 50 W

• Noise Level:

  • During Operation: 63 dB (A) or less

  • During Standby: 53 dB (A) or less

Dimensions & Weight

• Dimensions (W x D x H): 2,632 mm × 748 mm × 1,320 mm (103.7 in × 29.5 in × 52.0 in)

• Weight: 189 kg (417 lb)

Environmental Conditions

• Operating Temperature: 20–32°C (68–89.6°F)

• Operating Humidity: 35–80% RH (no condensation)

• Non-Operating Temperature: 5–40°C (41–104°F)

• Non-Operating Humidity: 20–80% RH (no condensation)
