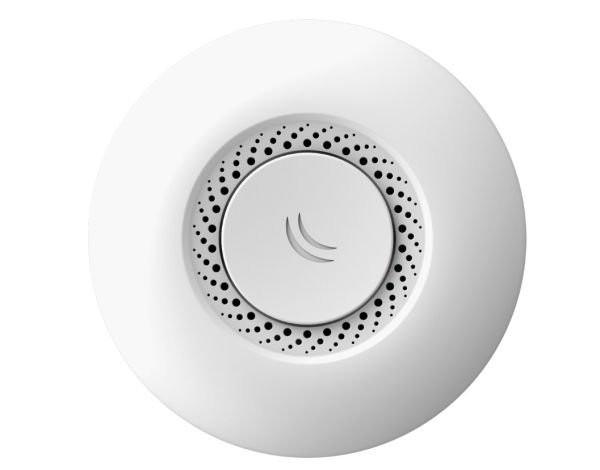

MikroTik cAP‑2nD Ceiling Access Point Dual‑Chain 2.4 GHz + PoE, RouterOS L4 RBcAP2nD
Estimated delivery within UAE 1–2 working days
Delivery to other countries 3–5 working days
-
Dual‑chain 2.4 GHz ceiling access point (Wi-Fi 4)
-
300 Mbps maximum data rate
-
QCA9533 CPU @ 650 MHz, 64 MB RAM
-
Single 10/100 Ethernet port
-
Supports PoE‑in (802.3af/at), 11–57 V input
-
Low power draw ~4 W, passive cooling
-
Compact ceiling design: 185 mm diameter × 31 mm height
-
Prelicensed with RouterOS L4, includes PoE injector & mounting kit
Specifications – MikroTik RBcAP2nD (cAP‑2nD)
General
-
Ceiling-mount access point model
-
RouterOS License Level 4
-
MIPSBE architecture
-
Operating temperature: –40 °C to +70 °C
CPU / Memory / Storage
-
Processor: QCA9533 @ 650 MHz (single core)
-
RAM: 64 MB
-
Flash storage: 16 MB
Wireless / Radio
-
Frequency: 2.4 GHz
-
Standard: 802.11b/g/n
-
Dual spatial chains
-
Maximum wireless rate: 300 Mbps
-
Antenna gain: 2 dBi
Ethernet / Port
-
1 × RJ45 10/100 Mbps
Power / PoE
-
PoE‑in support: 802.3af / 802.3at
-
Accepts 11–57 V DC input via PoE-in
-
Power consumption: ~4 W
-
Cooling: passive / fanless
Certifications & Features
-
CE, FCC, IC, EAC, RoHS certified
-
Enclosure rating: IP20 (indoor)
-
Supports mode button / reset
-
MTBF ~100,000 hours
Performance / Throughput
-
Bridge / fast-path throughput ~98.4 Mbps (1518-byte)
-
~173.6 kpps at 64-byte in bridging mode
