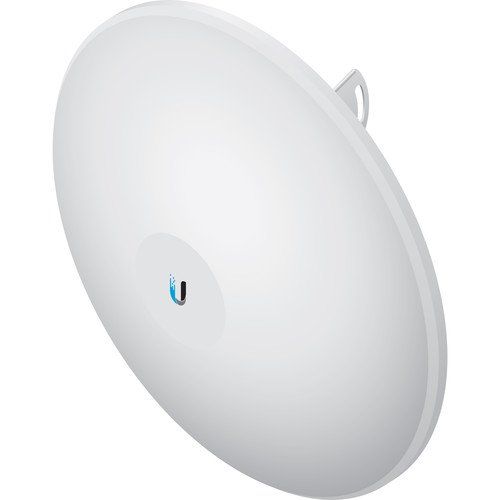

Ubiquiti PBE‑5AC‑500 PowerBeam 5GHz 27dBi airMAX ac High‑Gain Point‑to‑Point Wireless Bridge (500mm Dish)

Specifications

• Model: PBE‑5AC‑500 (PowerBeam ac)

• Gain: 27 dBi directional reflector dish

• Frequency Range: Worldwide: 5150‑5875 MHz; USA: 5725‑5850 MHz

• Networking Interface: 1 × Gigabit Ethernet (10/100/1000 RJ‑45)

• Processor: Atheros MIPS 74Kc, ~720 MHz

• Memory: 128 MB DDR2; Flash 16 MB

• Power: 24V Passive PoE supply (0.5A) included; Pairs 4 & 5+, 7 & 8 return

• Max Power Consumption: ~ 8.5 W

• Mechanical Dimensions:
    • Without radome: 520 × 520 × 308 mm
    • With radome: 525 × 525 × 315 mm

• Weight:
    • Without radome: ~ 2.35 kg
    • With radome: ~ 3.15 kg

• Environmental / Physical:
    • Operating Temp: ‑40 to 70° C
    • Operating Humidity: 5‑95% non‑condensing
    • Enclosure Material: UV‑stabilized plastic
    • Includes Pole Mount Kit

• Durability & Protection:
    • ESD/EMP protection: ±24 kV (air/contact)
    • Wind Loading: 264.6 N @ 96 km/h
    • Wind Survivability: ~96 km/h (60 mph)
    • Rated for salt fog, UV exposure, vibration, temperature shock
