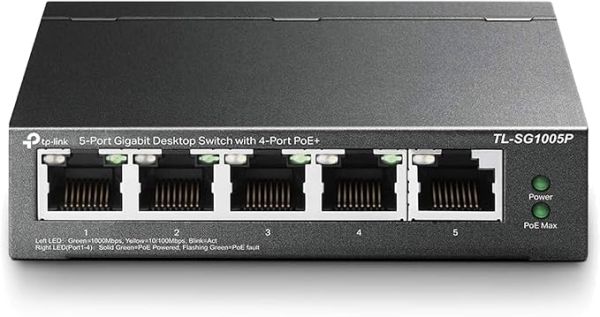

TP‑Link SG1005P 5‑Port Gigabit Desktop Switch with 4 Port PoE+ – 65 W Power Budget, Plug & Play Unmanaged Metal PoE Switch

Specifications – TP-Link TL-SG1005P

• Model: TL‑SG1005P

• Ports: 5 × RJ‑45 Gigabit Ethernet ports (10/100/1000 Mbps)

• PoE+ Support: Ports 1–4 support IEEE 802.3af/at PoE+

• Total PoE Budget: Up to 65 W across all PoE ports

• Max PoE per Port: Up to approximately 30 W per port

• Switching Capacity: 10 Gbps full duplex

• Packet Forwarding Rate: Approximately 7.44 million packets per second (Mpps)

• MAC Address Table: 2K entries

• Jumbo Frame Support: Up to 16 KB jumbo frame size

• QoS Support: 802.1p and DSCP for traffic prioritization

• IGMP Snooping: Enables efficient multicast traffic management

• Auto Features: Auto Negotiation and Auto MDI/MDIX on all ports

• External Power Supply: 53.5 V DC / 1.31 A

• Dimensions (W × D × H): 99.8 × 98 × 25 mm (approx. 3.9 × 3.9 × 1.0 in)

• Operating Temperature: 0–40 °C; Storage: –40–70 °C

• Certifications: CE, FCC, RoHS
