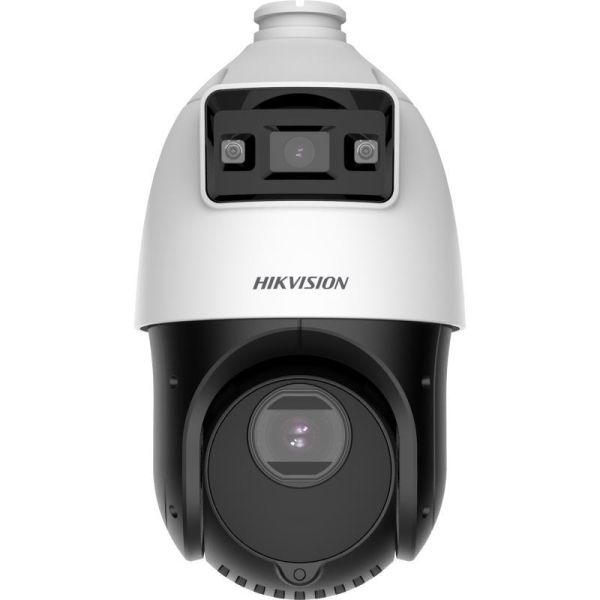

كاميرا هيكفيجن DS-2SE4C425MWG-E/14(F0) تاندم فيو 4 إنش 4 ميجابكسل 25X ملونة وIR شبكة سبيد دوم

Hikvision DS-2SE4C425MWG-E/14(F0) TandemVu 4-inch 4 MP 25X Colorful & IR Network Speed Dome

Camera Specifications:

• Image Sensor:

  • Bullet channel: 1/3" Progressive Scan CMOS
  • PTZ channel: 1/2.8" Progressive Scan CMOS

• Max. Resolution:

  • Bullet channel: 2560 × 1440
  • PTZ channel: 2560 × 1440

• Minimum Illumination:

  • Bullet channel: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
  • PTZ channel:
    • Color: 0.005 Lux @ (F1.6, AGC ON)
    • B/W: 0.001 Lux @ (F1.6, AGC ON)
    • 0 Lux with IR

• Shutter Speed: 1 s to 1/30,000 s

• Day & Night: ICR (Infrared Cut Filter)

• Zoom:

  • PTZ channel: 25x optical, 16x digital

• Slow Shutter: Yes

Lens:

• Focal Length:

  • Bullet channel: 2.8 mm
  • PTZ channel: 4.8 to 120 mm, 25x optical zoom

• Field of View (FOV):

  • Bullet channel:
    • Horizontal: 96.1°
    • Vertical: 52.1°
    • Diagonal: 113.3°
  • PTZ channel:
    • Horizontal: 55° to 2.4° (wide-tele)
    • Vertical: 33° to 1.4° (wide-tele)
    • Diagonal: 61.5° to 2.8° (wide-tele)

• Focus: Semi-auto, manual, auto

• Aperture:

  • Bullet channel: F1.0
  • PTZ channel: F1.6

• Zoom Speed (PTZ channel): Approx. 3.6 s

Illuminator:

• Supplement Light Type:

  • PTZ channel: IR
  • Bullet channel: White Light

• Supplement Light Range:

  • PTZ channel: Up to 100 m
  • Bullet channel: Up to 30 m

• Smart Supplement Light: Yes

PTZ (Pan-Tilt-Zoom) Features:

• Movement Range (Pan): 360°
• Movement Range (Tilt): -15° to 90° (auto flip)
• Pan Speed: Configurable from 0.1° to 80°/s, preset speed 80°/s
• Tilt Speed: Configurable from 0.1° to 80°/s, preset speed 80°/s
• Proportional Pan: Yes
• Presets: 300
• Preset Freezing: Yes
• Patrol Scan: 8 patrols, up to 32 presets for each patrol
• Pattern Scan: 4 pattern scans
• Park Action: Various actions including preset, pattern scan, patrol scan, tilt scan, and more
• 3D Positioning: Yes
• Scheduled Tasks: Multiple configurable tasks including scans and PTZ actions
• Power-off Memory: Yes

Video:

• Main Stream:

  • Bullet channel:
    • 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
    • 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • PTZ channel:
    • 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
    • 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream:

  • Bullet channel:
    • 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
    • 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • PTZ channel:
    • 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
    • 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

• Third Stream:

  • Bullet channel:
    • 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
    • 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • PTZ channel:
    • 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
    • 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

• Video Compression: H.265, H.264, MJPEG

• Video Bit Rate: 32 kbps to 16,384 kbps

Audio:

• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC
• Audio Bit Rate: 32 to 192 Kbps (MP2L2), 16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz, 16 kHz, 32 kHz, 48 kHz
• Environment Noise Filtering: Yes

Network:

• Protocols: IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, SNMP, NTP, RTSP, TCP/IP, UDP, etc.
• Simultaneous Live View: 20 channels
• API Support: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/Host Support: 32 users
• Security: Username/password authentication, MAC address binding, HTTPS encryption, IP address filter

Storage:

• On-board Storage: Micro SD/SDHC/SDXC, up to 256 GB
• Network Storage: NAS (NFS, SMB/CIFS), ANR

General:

• Power Supply: 12V DC, PoE+
• Power Consumption: Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
• Material: ADC12
• Operating Temperature: -30°C to 65°C (-22°F to 149°F)
• Protection: IP66, 6000V lightning protection, surge protection, voltage transient protection
• Dimensions: Ø 166 mm × 375 mm (Ø 6.5" × 14.7")
• Weight: Approx. 2.4 kg (13.2 lb.)

Additional Features:

• Wide Dynamic Range (WDR): 120 dB
• Defog: Digital defog
• Image Stabilization: EIS (Electronic Image Stabilization)
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask:
  • Bullet channel: 8 programmable polygon masks
  • PTZ channel: 24 programmable polygon masks
• Regional Focus and Exposure: Yes
• Demist: Heating glass for demisting
