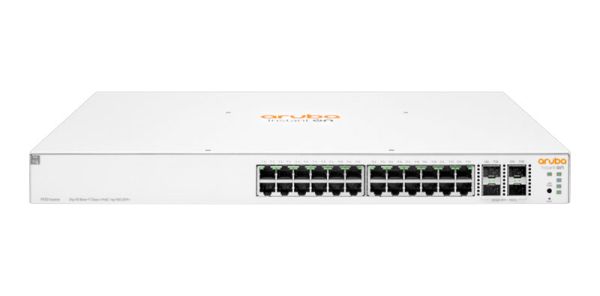

Aruba JL684B Instant On 1930 24‑Port Gigabit PoE+ (370 W) Switch with 4×10 Gbps SFP+ Uplinks, Smart Managed

متوفر في المخزن

Warranty: عام واحد

رمز المنتج

JL684B

1٬723٫68 ر.س.‏

24 Gigabit RJ‑45 PoE+ ports plus 4 SFP+ (1/10 Gbps) uplink ports.
370 W total PoE budget (Class 4) to power APs, cameras, IP phones, etc.
High switching capacity: 128 Gbps with ~ 95.23 Mpps throughput.
Low latency: < 2.4 µs at 1 Gbps; ~1.3 µs at 10 Gbps.
Solid memory / CPU: ARM Cortex‑A9 @ 800 MHz; 512 MB RAM; 256 MB flash; 1.5 MB packet buffer.
Rack‑mountable 1U form factor; dimensions ~ 44.25 × 26.47 × 4.39 cm; weight ~ 3.7 kg.
Wide voltage support: 100‑127 / 200‑240 VAC; internal PSU.
Smart‑management features: VLAN, QoS, link aggregation, ACLs, web/app/cloud UIs, jumbo frame support.

GTIN: 0190017593425

Manufacturer: Aruba

Model: JL684B

Colour: ابيض

Dimensions: 26.00 cm × 44.00 cm × 4.30 cm

Weight: 4.000000

Warranty: عام واحد

Specifications

Model: Aruba Instant On 1930 JL684B
Ports: 24 × RJ‑45 Gigabit Ethernet (10/100/1000 Mbps), autosensing PoE (IEEE 802.3at / PoE Class 4) + 4 × SFP+ ports (1/10 Gbps uplinks) PoE Budget: 370 W total PoE power across ports
Switching Capacity: 128 Gbps
Forwarding Rate / Throughput: ~ 95.23 million packets per second (Mpps)
Latency:
• < 4.7 µs at 100 Mbps
• < 2.4 µs at 1 Gbps
• ~ 1.3 µs at 10 Gbps
Processor & Memory: ARM Cortex‑A9 @ 800 MHz; 512 MB SDRAM; 256 MB flash; packet buffer ~1.5 MB
Physical Dimensions: 44.25 × 26.47 × 4.39 cm (W × D × H) / ~ 17.42 × 10.42 × 1.73 in; 1U rack height
Weight (net): ~ 3.67‑3.73 kg (≈ 8.10‑8.23 lb)
Power Input / Electrical: AC 100‑127 / 200‑240 VAC, 50‑60 Hz; internal power supply; maximum power consumption under full load ~ 439 W (or nearby figure)
Environmental: Operating temperature 0 °C to 40 °C; humidity 15‑95% non‑condensing; storage temperature ‑40 °C to +70 °C
Management & Features: Smart‑managed layer 2+; cloud / web portal / app / SNMP management; VLANs; link aggregation; QoS; ACLs; static routing support; jumbo frame support; various security controls
