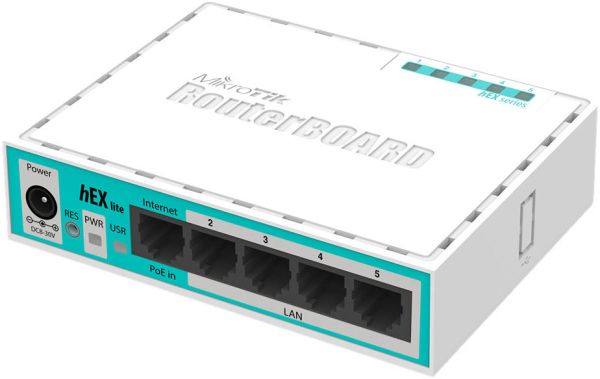

MikroTik RB750r2 hEX lite 5‑Port Fast Ethernet Router, 850 MHz CPU, PoE‑IN Support

-
Compact 5-port Fast Ethernet router with 5 × 10/100 ports
-
850 MHz single-core CPU with 64 MB RAM and 16 MB flash
-
Dual power input: DC jack + passive PoE-in (6–30 V)
-
Ultra-low power draw: ~2 W maximum
-
Silent operation with passive (fanless) cooling
-
Durable: operates from –40 °C to +70 °C
-
Bridging / routing throughput: ~493 Mbps (1518‑byte) testing
Specifications – MikroTik RB750r2 (hEX lite)
General / Overview
-
Model: RB750r2 (hEX lite)
-
Architecture: MIPSBE
-
RouterOS license level: 4
CPU / Memory / Storage
-
CPU: QCA9533, 850 MHz (single core)
-
RAM: 64 MB
-
Flash: 16 MB
Ports / Connectivity
-
5 × RJ-45 Fast Ethernet ports (10/100 Mbps)
-
2 power input methods: DC jack and passive PoE-in (6–30 V)
Power / Operation
-
Maximum power consumption: ~2 W
-
Cooling: fanless, passive
-
Operating temperature: –40 °C to +70 °C
-
Certifications: CE, EAC, RoHS
-
IP rating: IP20 (indoor)
Performance / Throughput
-
Bridging throughput (1518-byte): ~493 Mbps
-
Routing & bridging tests show ~40.6 kpps at 1518 bytes
-
Performance degrades under filtering / NAT functions
