Hikvision DS-PWA64-Kit-WB AX PRO Wireless Intrusion Alarm System Kit

Specifications

Software / Functional Features

• Supports up to 32 tags

• Supports 16 areas

• Supports up to 64 zones (includes support for up to 48 PIRCAMs)

• 1 installer account, 1 admin account, 30 user accounts

• Voice prompt built-in

• Built-in loudspeaker

• Event memory log: stores up to 5,000 events

• Configuration via Hik-Connect, Hik-Partner Pro, Web Portal, IVMS4200, Convergence Cloud

• Firmware upgrades via mobile app or web portal

• Arm modes: Away / Stay

• Automatic Arm / Disarm timers supported

• Forced arming even when zones are open

• Diagnostics supported via app and web

• Supports ARC protocols: SIA DC09 (level 2), Contact ID, ISUP, ISAPI (SDK)

• Compatible with Hik-IP Receiver & Receiver Pro (Sur-Gard & Ademco 685)

• Supports video verification & remote control

Hardware / Communication

• RS-232 output supported

• Single SIM slot

• Wireless (RF) transmission: 433 MHz

• Wireless security: frequency hopping, 128-bit AES encryption

• Onboard GPRS module supported

• Wired network connectivity supported

• Wi-Fi standard supported

Electrical / Power

• Built-in power supply

• Built-in Li-ion battery backup

• Battery life: up to 12 hours under normal temperature (reduced under cold)

• Operating temperature: –10 °C to +55 °C

• Shell / housing: plastic

• Dimensions (W × H × D): 170.0 mm × 170.0 mm × 38.6 mm Hikvision+1

• Product weight (unit only): 557.5 g Hikvision

• Color: White

Device / Peripheral Support

• Supports up to 32 keyfobs

• Supports 4 wireless sounders (2 internal + 2 external)

• Supports up to 8 keypads (including tag reader)

• Wireless repeaters: up to 2

• Multi transmitters: up to 4

• Supports PIRCAM devices

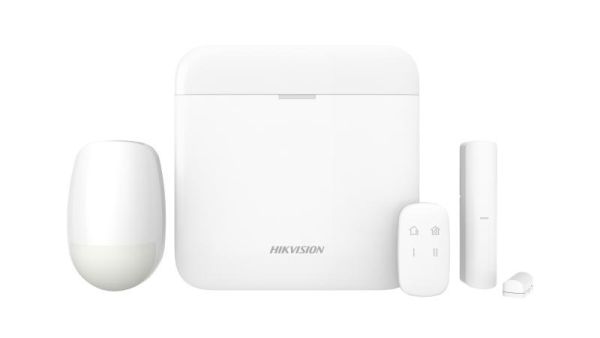

Included in Kit

• 1 × DS-PWA64-L-WB (main control panel)

• 1 × DS-PKF1-WB (wireless keypad)

• 1 × DS-PDP15P-EG2-WB (wireless PIR detector)

• 1 × DS-PDMC-EG2-WB (wireless magnetic contact)
