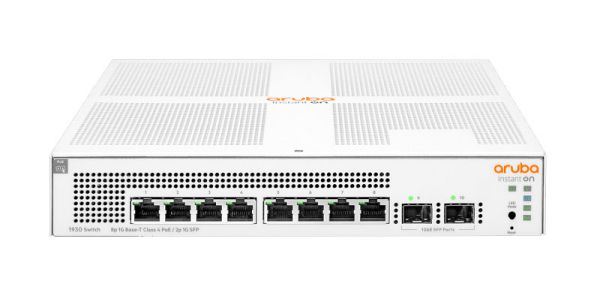

Aruba JL681A Instant On 1930 8‑Port Gigabit PoE+ (124 W) Switch with 2×1 Gb SFP Uplinks, Smart Managed

متوفر في المخزن

رمز المنتج

JL681A

98٫24 د.ب.‏

8 Gigabit RJ‑45 PoE+ ports plus 2 Gigabit SFP uplinks.
124 W total PoE power (Class 4) to support APs, cameras, phones.
20 Gbps switching capacity with ~14.88 Mpps throughput.
Efficient internal design: idle power ~11.7 W, max ~150.2 W under full load.
ARM Cortex‑A9 CPU @ 800 MHz, 512 MB RAM, 256 MB flash; 1.5 MB packet buffer.
Compact 1U form factor: ~ 25.4×25.4×4.39 cm; weight ~ 1.16 kg.
Management via Aruba Instant On portal/app or local Web GUI + SNMP.
Operates in standard environmental conditions: 0‑40 °C, 15‑95% humidity, non‑condensing.

GTIN: 0190017355238

Manufacturer: Aruba

Model: JL681A

Colour: اسود

Dimensions: 51.00 × 35.00 × 13.00 cm

Weight: 3.000000

Specifications

Model: Aruba Instant On 1930 JL681A
Ports: 8 × RJ‑45 Gigabit Ethernet (10/100/1000) with PoE (Class 4) + 2 × 1 Gbps SFP uplink ports
PoE Budget / Capability: 124 W total, Class 4 PoE
Switching Capacity: 20 Gbps
Throughput / Forwarding Rate: ~ 14.88 million packets per second (Mpps)
Processor & Memory: ARM Cortex‑A9 @ 800 MHz; 512 MB SDRAM; 256 MB flash; 1.5 MB packet buffer
Power / Electrical: Input voltage 100‑127 / 200‑240 VAC; Maximum power consumption ~ 150.2 W, idle ~ 11.7 W
Physical Dimensions: ~ 25.4 × 25.4 × 4.39 cm (Width × Depth × Height) (≈ 10 × 10 × 1.73 in), 1U height
Weight (net): ~ 1.16 kg (≈ 2.56 lb)
Operating Conditions: Ambient temperature 0 °C to 40 °C; relative humidity 15%‑95%, non‑condensing
Management & Features: Layer 2+ smart managed switch; VLANs, link aggregation; local Web GUI; Aruba Instant On app / cloud portal; SNMP support
